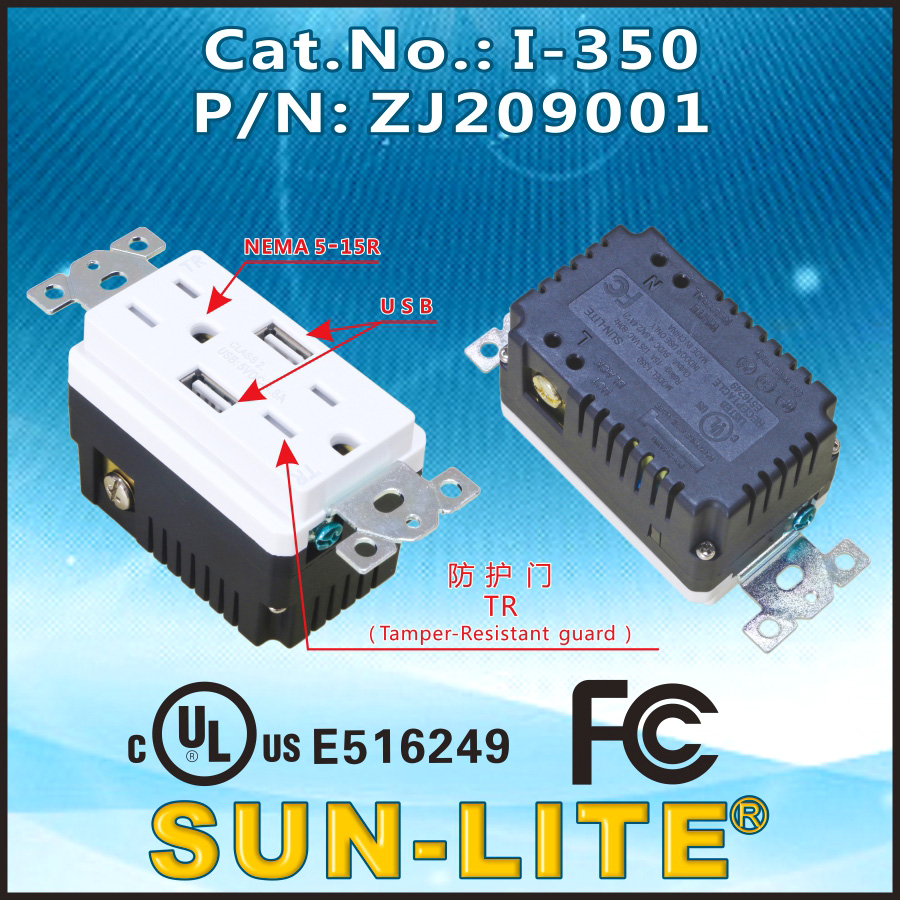

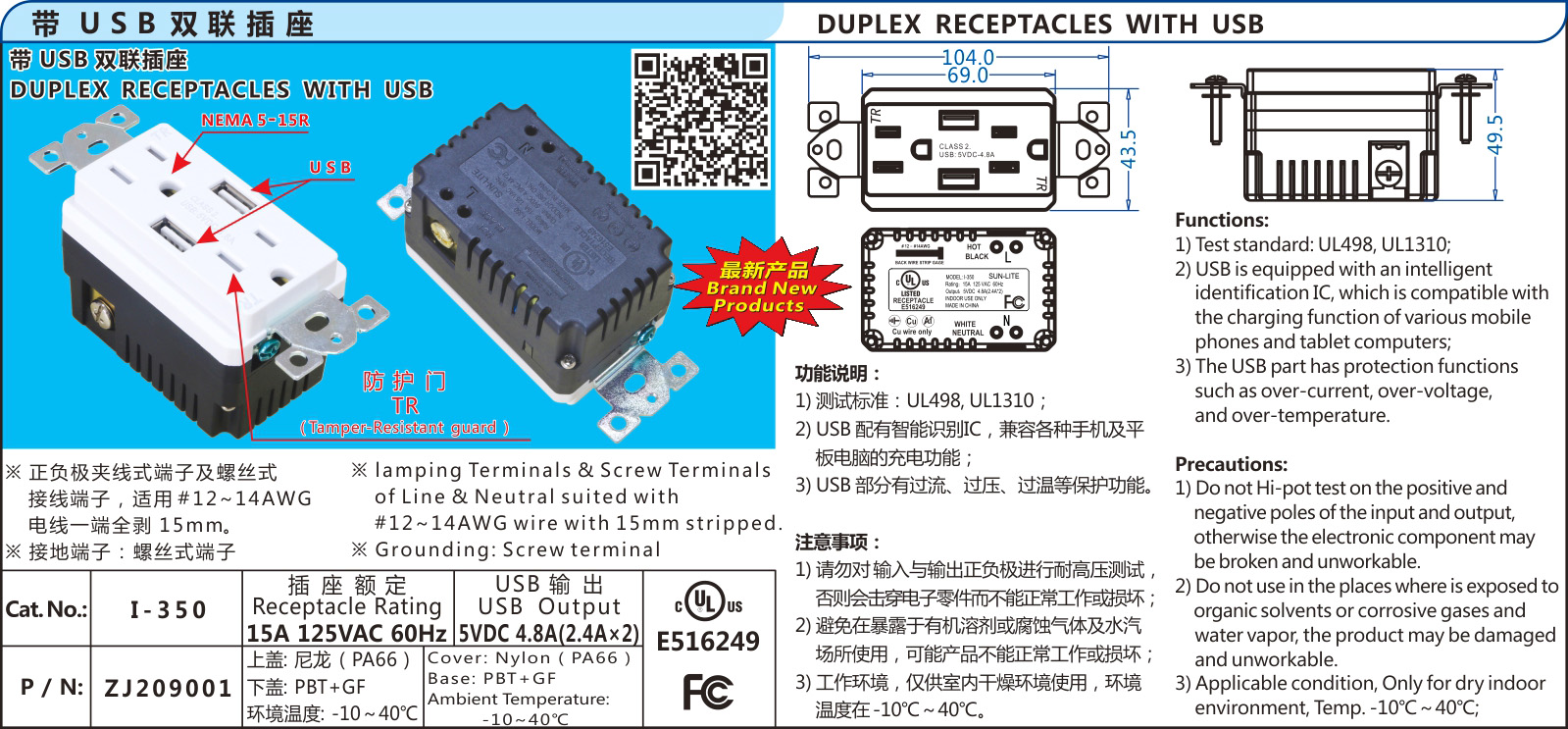

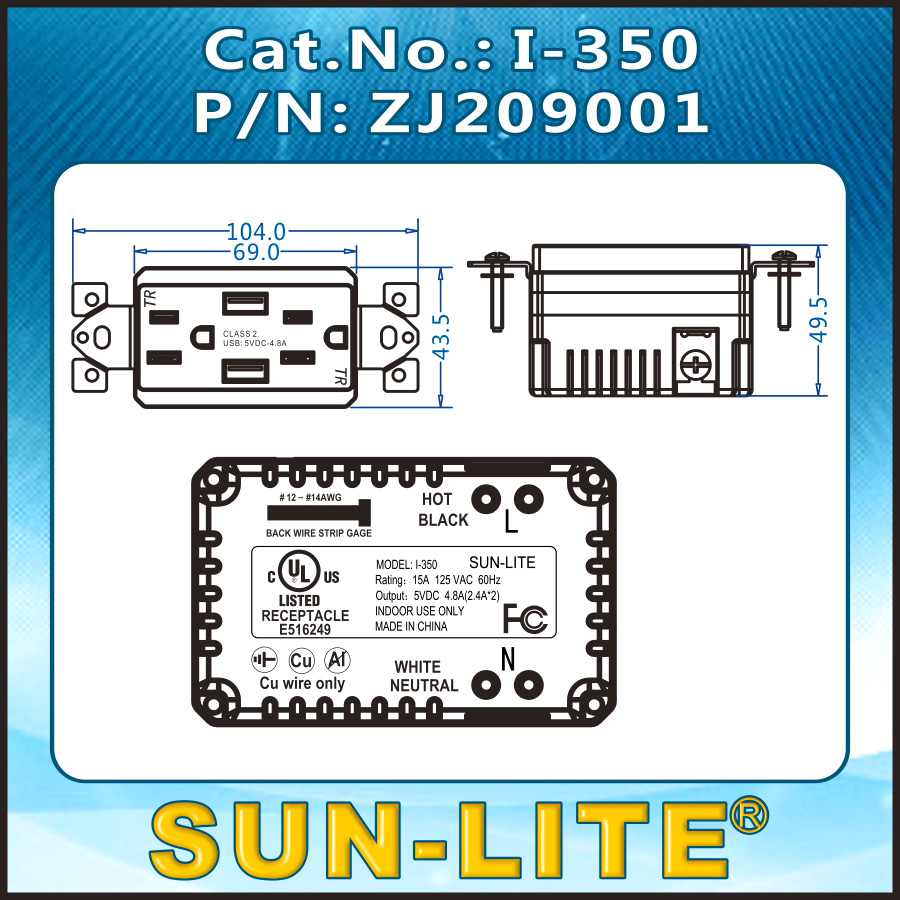

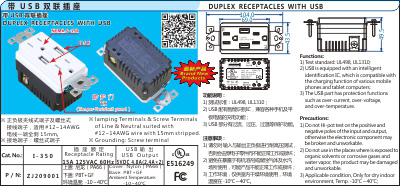

DUPLEX RECEPTACLES WITH USB


Cover: Nylon ( PA66 )
Base: PBT+GF
Ambient Temperature: -10~40℃

Receptacle Rating: 15A, 125VAC, 60Hz
USB Output: 5VDC, 4.8A ( 2.4A×2 )

Functions:
1) Test standard: UL498, UL1310;
2) USB is equipped with an intelligent identification IC, which is compatible with the charging function of various mobile phones and tablet computers;
3) The USB part has protection functions such as over-current, over-voltage, and over-temperature.

Precautions:
1) Do not Hi-pot test on the positive and negative poles of the input and output, otherwise the electronic component may be broken and unworkable.
2) Do not use in the places where is exposed to organic solvents or corrosive gases and water vapor, the product may be damaged and unworkable.
3) Applicable condition, Only for dry indoor environment, Temp. -10℃～40℃;

RoHS conformed

PATENTED
