20W FAST-CHARGER ( A+C ) USB CHARGER, PS-07

The best price is based on you min. order qty, so we setting the unit price as " 0 " means you should get the price by Tel, email, or visit us direct. The contact info. as below;
Tel :86-769-83312620 Ext: 258 Email: jzyewu@richbrand.com

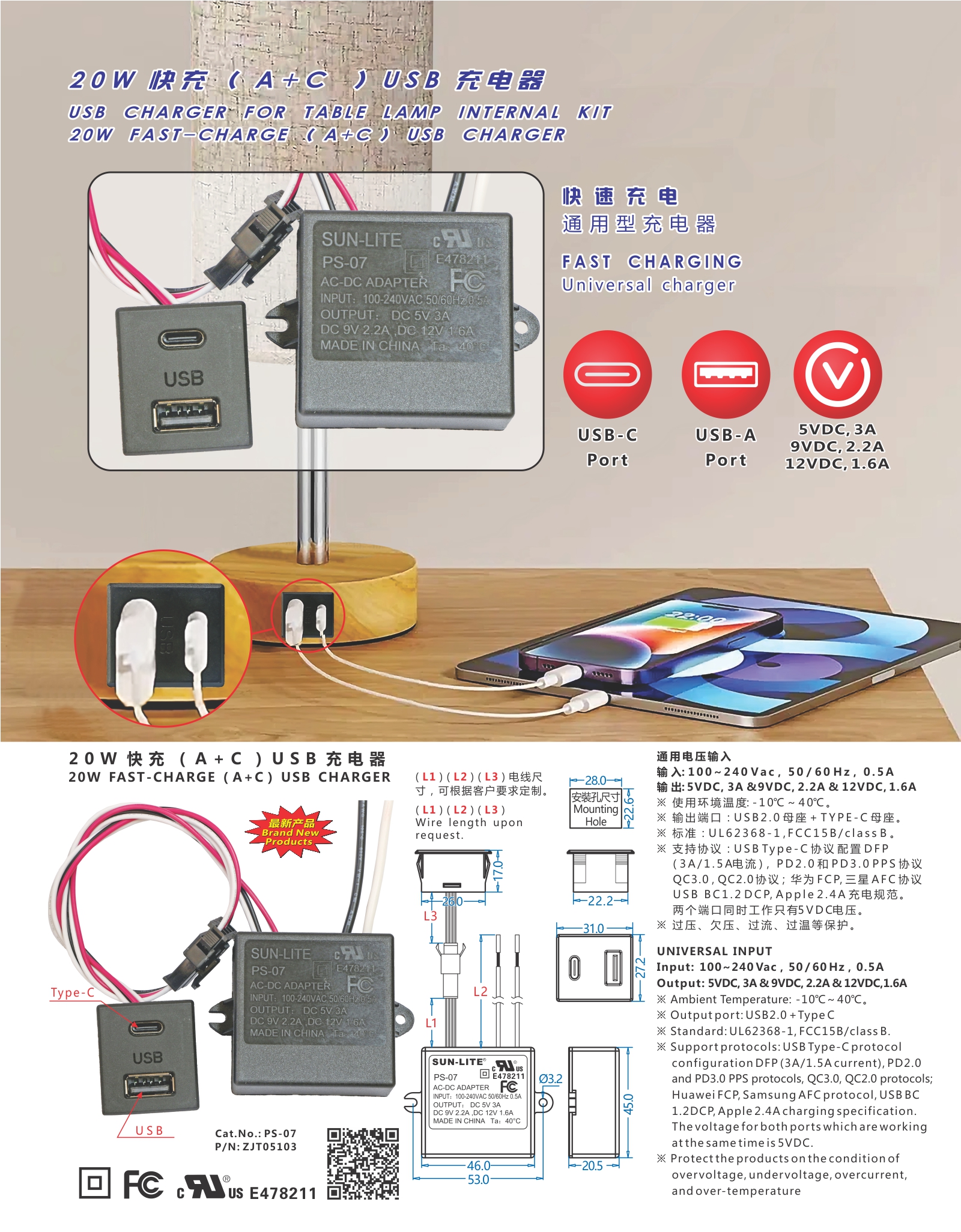

20W FAST-CHARGE ( A+C ) USB CHARGER









UNIVERSAL INPUT

Input: 100~240 Vac, 50 / 60 Hz, 0.5A
Output: 5VDC, 3A & 9VDC, 2.2A & 12VDC, 1.6A


※ Ambient Temperature: -10℃ ~ 40℃。
※ Output port: USB2.0 +Type C
※ Standard: UL62368-1, FCC15B/class B.
※ Support protocols: USB Type-C protocol configuration DFP (3A/1.5A current), PD2.0 and PD3.0 PPS protocols, QC3.0, QC2.0 protocols; Huawei FCP, Samsung AFC protocol, USB BC 1.2DCP, Apple 2.4A charging specification. The voltage for both ports which are working at the same time is 5VDC.
※ Protect the products on the condition of overvoltage, undervoltage, overcurrent, and over-temperature

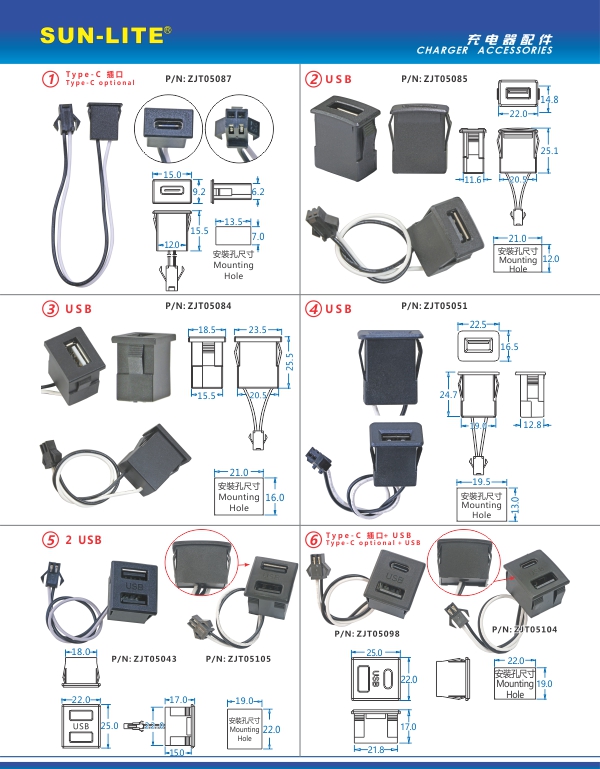

Arc surface USB or Type-C optional
Wire length upon request.




RoHS conformed
